FlyUp Media Converter TX
Airborne CVBS analog video media converter for UAV platforms. Transmits video at 1310nm while simultaneously receiving SBUS/CRSF control data at 1550nm. 25MHz sampling with exponential smoothing and synchronous UART TTL up to 920 kbit/s.
// Versions

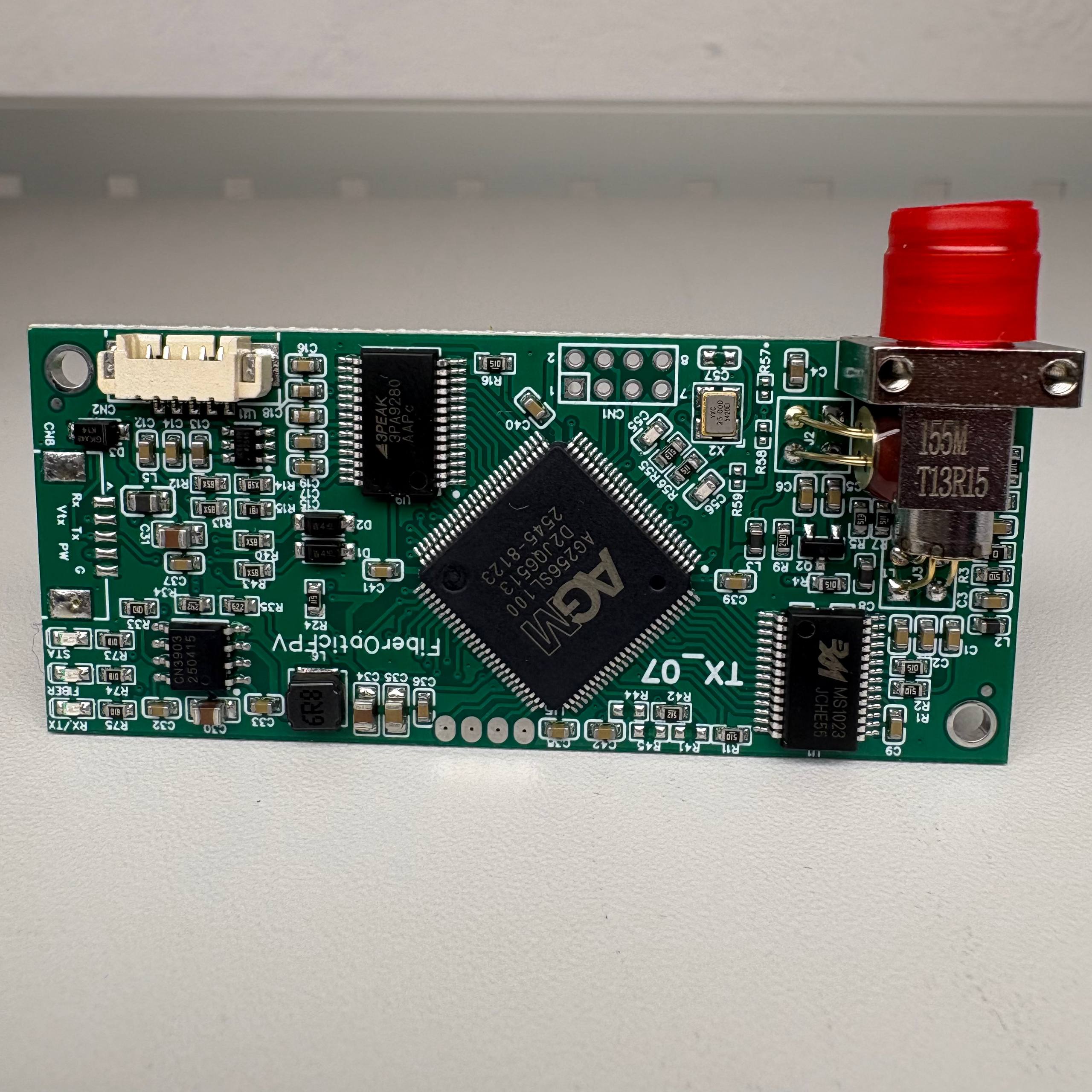

Version A

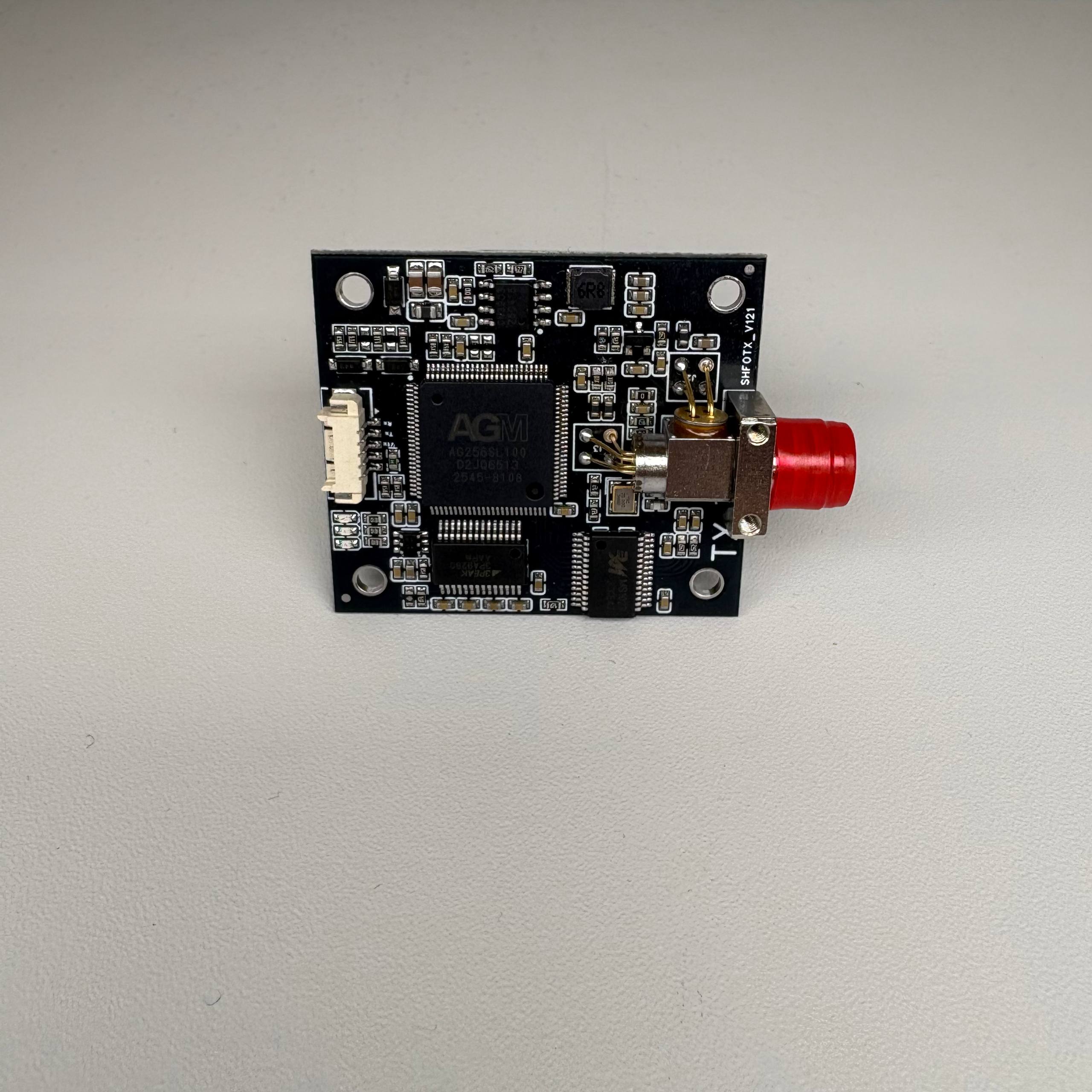

Version B
// Technical Specifications
| Module role | Airborne (on UAV) |
| Video standard | Analog CVBS composite video |
| Sampling rate | 25 MHz |
| Smoothing | Exponential smoothing function |
| UART | Synchronous TTL up to 920 kbit/s |
| Video TX wavelength | 1310 nm |
| Data RX wavelength | 1550 nm (−30…−32 dBm) |
| Data protocol | SBUS / CRSF |
| Optional wavelengths | 1550/1490 nm · 1270/1330 nm |
| Compatible with STHANCO violet and blue modules |
